Semiconductor Processing Guide: Diamond Solutions for Efficient Production

Semiconductors are at the center of technological transformation. From electric vehicles to AI infrastructure, global demand is accelerating. The rapid adoption of new technology forces higher performance requirements for semiconductors. Innovative materials are central to achieving higher performance standards. Advanced semiconductor materials, like silicon carbide (SiC) and gallium nitride (GaN), redefine what semiconductors can do. These materials enable higher voltages, faster switching, and improved thermal performance. Material advancements come with a tradeoff: manufacturing complexity increases at every stage of production.
Artikel Herunterladen
Artikel Herunterladen



The Challenge of Advanced Materials



As electronic performance requirements shift toward wide bandgap and compound semiconductors, traditional processing approaches are being pushed to their limits. Harder, brittle substrates introduce new challenges from wafer slicing to final device fabrication. Material challenges create small variations in processing that lead to:

  • Subsurface damage and cracking
  • Increased defectivity and yield loss
  • Higher cost per wafer due to rework or scrap



Simultaneously, the market is moving toward larger wafer formats that magnify the consequences of quality failures. Maintaining precision at scale requires a fundamentally different level of process control to reach flatness, total thickness variation (TTV), and material removal.



Precision Processing Starts with Diamond

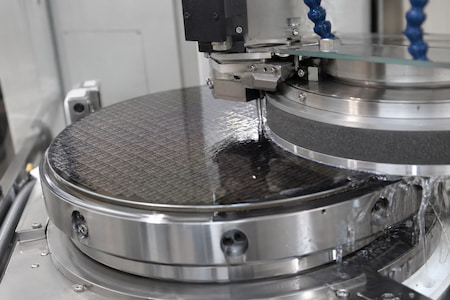

Wafer Polishing (CMP) with Diamond Slurry



Hyperion Materials & Technologies engineers diamond-based solutions to enable consistent, precise material removal across the semiconductor manufacturing process.

Hyperion’s engineered diamond abrasives provide the control required to process hard, brittle materials with consistency at scale. Diamond application experts partner with leaders in the semiconductor industry to find materials solutions fast.

Advanced diamond solutions are customized to specific process parameters to achieve:

  • Tight tolerances across larger wafers
  • Improved surface quality at every stage
  • Consistent, repeatable throughput at scale



Download the Semiconductor Processing Guide



Optimizing your production process is key to remaining efficient and competitive in a growing marketing. Hyperion’s team of diamond experts have the process and material knowledge to quickly identify solutions for semiconductor manufacturing challenges.

Download the guide to learn how diamond solutions can decrease defect rates, improve throughput, and reduce the cost per wafer for next generation semiconductor manufacturing.
