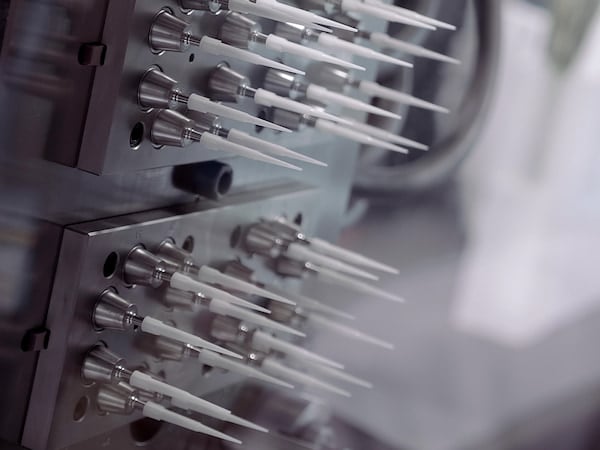

Injection Molding Tooling Components
Injection mold tooling components play a critical role in achieving dimensional accuracy, surface quality, and repeatable performance in plastic injection molding. Hyperion delivers injection mold tooling components engineered for industries, such as medical plastic component manufacturing, where consistency and long tool life directly impact productivity.
Products
Core Pins
Tolerances: Depending on geometry and application, tolerances can reach 0.000050 inches (0.00127 mm) in roundness and size.
Description: CraftAlloy™ tungsten carbide core pins used to form internal features in plastic injection molded parts.
Tolerances & Materials
Precision injection molding depends on tooling components that maintain geometry under extreme mechanical and thermal loads. Hyperion’s injection mold components are manufactured using CraftAlloy™ cemented tungsten carbide selected for their hardness, stiffness, and wear resistance.
Depending on geometry and application, tolerances typically operate at ±0.0001 in / ±0.003 mm, with features producible down to 0.006 in / 0.15 mm in diameter. This micron‑level precision supports tight roundness, concentricity, and surface finish requirements. These material capabilities help minimize wear, reduce core deflection, and improve part quality, particularly in high‑cavity or long‑run molds.
Where required, components can be optimized for:
- High glass‑filled or abrasive polymers
- Elevated injection pressures
- Extended production cycles
Materials expertise directly supports products within custom mold parts where rigidity and dimensional stability are essential.
Custom Components
Hyperion offers fully custom injection mold tooling components tailored to your mold design and process requirements.
For complex applications, custom tooling components are engineered in close collaboration with customers to address challenging geometries, space constraints, or material interactions.
All Hyperion injection mold tooling components are produced using controlled manufacturing processes that ensure repeatability across batches and facilities. This is a key requirement for global mold builders and Tier‑1 suppliers.
Supply Chain Stability
As established injection mold components suppliers, Hyperion supports customers through a globally integrated manufacturing and supply chain network. A regionalized infrastructure enables consistent quality, material traceability, and dependable delivery, even for complex or high‑volume tooling programs.
Tooling components can be supplied with identification and tracking options that support inventory management and lifecycle monitoring, helping reduce downtime and simplify toolroom operations. A globalized supply chain ensures that mold components sourced across regions meet the same material and dimensional standards.
Frequently Asked Questions about Injection Molding Tooling Components
Working with established injection mold components suppliers that operate integrated global manufacturing systems ensures uniform material specifications, controlled processes, and documented traceability. This approach minimizes variation and supports reliable mold performance worldwide.
