Borazon™ CBN Electroplated / Single Layer

Hyperion Borazon 500 cubic boron nitride (CBN)

Hyperion Code: Borazon 700/300/500/570

Grading: Mesh/FEPA

Description: CBN crystals tailored for electroplating and other single layer systems.

Get a quote
Get more info

Borazon™ Electroplated bond products


Hyperion Materials & Technologies manufactures a wide range of Borazon™ cubic boron nitrides (CBN), including the following electroplated / single layer bond products.

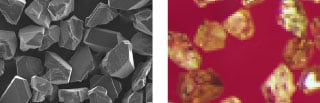

Borazon™ CBN 700
(Density 3.48 g/cm3) Hyperion Borazon CBN 700

Borazon CBN 700 is gold in color and tough and blocky in shape with sharp edges. It has the highest fracture strength of any monocrystalline Borazon CBN product and provides longest life performance without increasing power consumption. Borazon CBN 700 is ideally suited for hardened tool steels, stainless steels, and nickel- and cobalt-based superalloys.​

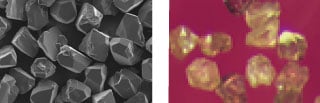

Borazon™ CBN 500
(Density 3.48 g/cm3)
Hyperion Borazon CBN 500

Electroplated tools are the best candidates for this golden colored, tough, and blocky crystal. Borazon CBN 500 has high fracture strength. Aggressive, long-life performance is provided by this crystal in hardened tool steels, carbon and alloy steels, and nickel- and cobalt-based superalloys.​

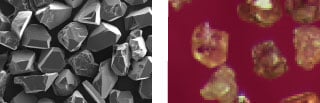

Borazon™ CBN 300
(Density 3.48 g/cm3)

Hyperion Borazon CBN 300 Borazon CBN 300 is designed as a blocky, tough crystal for use in general purpose applications. While blocky in shape, it is more irregular than Borazon CBN 500 or Borazon CBN 700.​

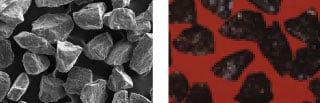

Borazon™ CBN 570
(Density 3.48 g/cm3)
Hyperion Borazon CBN 570

Borazon CBN 570 is treated for electroplating applications and is well-suited for applications where large mesh sizes with high particle strength are required. This product is also effective in grinding aerospace components such as turbine blades, vanes, and seals.

Electroplated/ Single Layer Borazon CBN Mesh Size Availability

US Mesh (FEPA) 700 500 300 570
20/30 (B852)
30/40 (B602)
40/50 (B427)
50/60 (B301)
60/80 (B252)
80/100 (B181)
100/120 (B151)
120/140 (B126)
140/170 (B107)
170/200 (B91)
200/230 (B76)
230/270 (B64)
270/325 (B54)
325/400 (B46)
400/500 (none)

✔ Standard     ● Special (please consult your sales representative)


In addition to electroplated/single layer bond CBN, we also offer the following CBN:


Your Hyperion salesperson can offer their expertise in selecting the mesh CBN best suited to solve your needs.


Hyperion also manufactures a range of micron CBN powders and micron diamond powders as well as high quality mesh diamonds.
