Plungers / Stepped Cylinders

Hyperion cemented carbide plunger

Hyperion Code: n/a

Dimensions: as per drawing/requested

Description: Components for process equipment manufactured to custom dimensions. Cemented carbide grades and designs are tailored to each customer based on individal needs and requirements.

Get a quote
Get more info

Hyperion Materials & Technologies manufactures cemented carbide cylinders for use as plungers.  They are available as stepped and non-stepped with or without center ends. We partner with our customers to develop solutions for their plunger and stepped cylinder wear part applications.

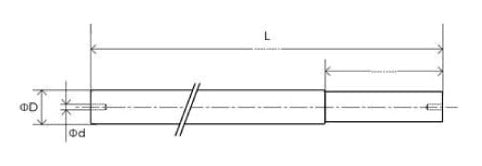

Hyperion Plungers stepped cylinders



Outer Diameter (øD): ≤ 115 mm

Length (L): ≤ 370 mm



Roughness Average (Ra): 3.2

Tolerances: ≥ ±1%



Grades with hardness (HV30) from 900 to 2200

Grades resistant to corrosion down to pH > 2



Center ends: one or two; Minimum d = 1.2 mm; Length = 2.5 x ø

Ground Tolerances: øD ≥ ±0.006 and L ≥ ±0.06

Roughness Average (Ra): ≥ 0.05

Transition steps


Additional sizes, tolerances, cemented carbide grades, and quantities (e.g., tests) are available upon request.


Other fluid handling wear parts manufactured by Hyperion include:


Your Hyperion salesperson can offer their expertise in selecting the cemented carbide and wear part best suited to solve your needs.
