Dental Bur Pellet Open Tolerance

Hyperion cemented carbide dental burs

Hyperion Code: Pellet (open tolerance)

Dimensions: Metric

Description: Dental bur pellet blanks for brazing to stainless steel shank. Available in select diameters (1.6 - 3.2 mm) and lengths (2.2 - 8.1 mm). Standard cemented carbide grade is H10F, tested as non-cytotoxic according to EN ISO 10993-5:2009 Biological evaluation of medical devices — Part 5: Tests for in vitro cytotoxicity.

Open Tolerance Pellet



Hyperion Materials & Technologies has been manufacturing high quality cemented carbide dental burr blanks, including Bur Pellets with open tolerances, for over twenty years. Our high quality cemented carbide products result from a fully integrated process with strict and robust statistical process controls that create superior finished blanks. We partner with our customers to improve performance and develop solutions for their dental bur applications.



PRODUCTS APPLICATIONS

• Blanks products

• Bur pellet, open tolerance

• Surgical procedures

• Laboratory manufacturing capabilities



BENEFITS

• Reliable and consistent cemented carbide products resulting from Hyperion’s experience in developing cemented carbide grades for the medical industry

• Polished and ground finishes reduce the need for further manufacturing

• Reduced delivery time resulting from Hyperion’s global distribution centers

• Material knowledge of metal cutting applications.



Pellet for 2-Piece Bur/Solid Pin

Hyperion pellet for 2-pieces bur/solid pin



SIZES

Diameter (mm) Length (mm)
1.6 2.2
1.6 3.9
1.6 4.4
1.8 4.5
2.2 4.5
2.2 5.1
2.2 5.3
2.5 2.2
2.5 3.7
2.5 4.4
2.6 4.5
2.6 4.7
2.6 5.1
2.6 5.3
2.6 6.7
2.8 5.0
3.2 8.1

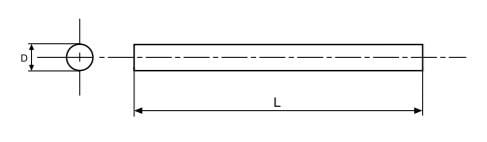

TOLERANCES

Diameter (D): ±0.10 mm

Length (L): D < 4.5: ±0.10 mm

                  D > 4.5: +0.30/0 mm

Roughness Average (Ra): 0.4 to 1.0



Standard Cemented Carbide Grades Minimum Order Quantity
H10F, H6M 50,000 pieces



OPTIONS

Sizes down to D = 0.9 mm x L = 0.7 mm

Polished finish (Ra 0.2 - 0.4)

Nickel coating



Additional sizes, tolerances, cemented carbide grades, and quantities (e.g., tests) are available upon request.

Other cemented carbide medical and dental wear parts manufactured by Hyperion include:



Your Hyperion salesperson can offer their expertise in selecting the cemented carbide and wear part best suited to solve your needs.



Did you know you can recycle your cemented carbide with Hyperion?  Visit our recycling page or contact us for details.



*Cemented carbide is also known as solid carbide or tungsten carbide (WC).
