PM Compaction Tooling & Dies
Powder compaction tooling is the foundation of the powder metallurgy (PM) manufacturing process. Precision-engineered dies, punches, and core rods are used to compact metal powder into near-net-shape components under high pressure. The PM compaction process creates green-form shapes that are then sintered into hard material solutions. At Hyperion Materials & Technologies, powder compaction tooling solutions are engineered to deliver exceptional dimensional control, repeatability, and extended tool life in high-volume production environments.
Designed for mechanical presses, powder compaction tooling must withstand extreme compressive loads while maintaining tight tolerances over millions of cycles. Hyperion PM compaction tooling is best suited for applications where production schedules and part availability are crucial to success, like automotive, technical ceramics, permanent magnet manufacturing. Hyperion offers PM compaction tooling for hydraulic presses, multi-level presses, rotary presses, and quick-change tool systems,
By combining advanced material expertise with precision manufacturing capabilities, Hyperion ensures every powder compaction tooling set maximizes productivity and part consistency.
Products

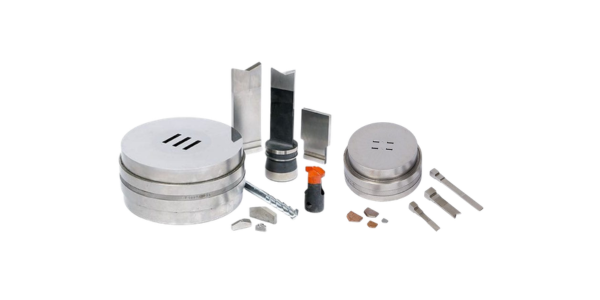

Punches, Dies & Tool Sets
Type: Punches, Dies, Full Tool Sets
Materials: Carbide, Steel, Coated Steel, Ceramic
Description: Single or multi-cavity dies, multi-level press components, and precision quick change tools.
Tool Selection: Key PM Compaction Tooling Attributes
Geometric Complexity
Modern powder compaction tooling must accommodate increasingly complex part geometries. Multi-level parts, intricate internal features, and thin-wall designs demand high-precision die and punch systems. Hyperion’s advanced engineering and manufacturing capabilities enable highly complex powder compaction tooling configurations that maintain structural integrity, resist wear, and prevent sticking and galling.
Through precision CNC grinding, robotic EDM, RAM/Plunge EDM, and wire EDM technologies, Hyperion’s production facilities achieve sharp details, consistent alignment, and mirror-like surface finishes, even for intricate internal geometries. Precise and intricate shapes can be machined on large pieces up to 13.5 inches tall.
Hyperion manufacturing sites have experience producing single-cavity and multi-cavity PM compaction tool sets.
Punch & Die Material
Material selection is critical to the performance of powder compaction tooling. Hyperion offers PM compaction tooling sets in a variety of materials. Application specialists support customers in selecting the right material based on geometry, application, and budget.
Hyperion uses quality-controlled tungsten carbide grades and premium steels specifically engineered for wear resistance, compressive strength, and toughness. Steel can be chrome coated as required for specific applications.
Carbide powder compaction tooling offers superior hardness and dimensional stability, reducing wear and extending service life. Hyperion is vertically integrated for carbide production, so grades are optimized from the raw material stage to minimize cracking, galling, and deformation under repeated compaction cycles.
Specialized grades are available to address specific compaction tooling needs, including:
- Sudden section changes
- Maximum wear resistance
- High impact tolerance
Production Volume
High-volume production requires powder compaction tooling sets built for durability and consistency. Hyperion compaction tooling sets are designed for millions of compaction cycles. Reworking service extends the usable life of PM compaction tools.
Reconditioning services are available across the globe for retipping and polishing to extend tool life and optimize the performance of dies and punches
By combining wear-resistant materials with mirror-like surface finishes, Hyperion’s powder compaction tooling supports continuous production runs with reduced downtime, lowering the total cost per part.
Tolerances & Surface Finish
Tolerances: Hyperion powder compaction tooling is manufactured to extremely tight dimensional tolerances of 0.001 mm. Tight tolerances ensure part-to-part consistency and proper fit after sintering.
Surface Finish: Precision finishing is critical to prevent sticking, galling, and friction that degrades part quality. Hyperion provides powder compaction tooling with mirror-like surface finishes less than 0.5 Ra.
In-House Design
Hyperion’s fully integrated engineering team designs every powder compaction tooling system in-house. From initial concept and simulation to final inspection, Hyperion teams collaborate closely with customers to optimize performance, tool life, and cost efficiency.
Advanced CAD/CAM modeling and press simulation software helps engineers tailor each powder compaction tooling set to press tonnage, part geometry, and production volume. Engineers can develop original tooling designs or reverse engineer tooling based on manufactured components.
Hyperion’s integrated approach to part design ensures faster development cycles and tooling engineered for long-term success.
FAQs about Powder Metal Compaction Tooling
To choose the right material for PM compaction tooling, six key factors should be considered: press tonnage, part geometry, powder mix characteristics, required tolerances, expected production volume, and tooling spend.
Tooling must be engineered to handle specific compressive loads. Higher tonnage presses typically require carbide compaction tooling sets for durability and dimensional stability. Medium to lower tonnage presses can give consistent results with tempered or chrome-coated steel compaction tooling. Hyperion engineers recommend the right hard material based on each customer’s specific requirements.
Lead times vary depending on complexity and size. Standard PM compaction tooling has an average 8-week lead time. Complex or large compaction tooling has a longer lead time to account for additional engineering and validation.
Mirror-like surface finishes decrease friction, sticking, and galling during press cycles. High-quality tooling from Hyperion can also be reworked to like-new condition at Hyperion facilities around the globe. Hyperion engineers analyze your process parameters to determine if coatings are necessary for optimized performance. Coating is generally recommended for steel tooling, though this depends on the manufacturing conditions.
Hyperion’s manufacturing processes are designed to limit the time you must spend on incoming inspection. Dimensional verification, material certification, surface finish inspection, concentricity checks, and hardness testing are completed before tools are shipped to customers. Upon receiving your compaction tooling set, Hyperion engineers recommend a visual check for any chipping or cracking that may have occurred due to mishandling in transit. All Hyperion facilities are ISO 9001:2015 certified for quality. Hyperion is also vertically integrated, ensuring tight process controls and quality inspections from raw powder processing to end product.
