Electronic Bonding Tools & Components

Bonding tools for electronic manufacturing to support precise, repeatable wire bonding in microelectronic applications.

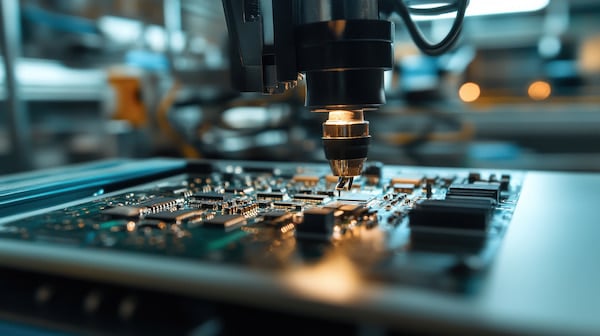

Electronic bonding tools are critical in microelectronic manufacturing processes, used in semiconductor and electronics production environments where accuracy, repeatability, and surface integrity impact performance. Hyperion supplies precision bonding components designed to support tooling that provides stable, repeatable electronic bonding processes.

Get more info
Get more info
Get a quote
Get a quote

Products


Wire Bonding Jewel Clamps

Tolerances: Per customer specification

Description: Precision wire bonding jewel clamps manufactured from wear‑resistant materials to guide and stabilize fine wire during electronic wedge bonding operations.

About Wire Bonding Jewel Clamps

Tolerances & Materials



Bonding tools operate at very small scales, where dimensional consistency and surface quality directly affect performance. Components within this category are manufactured to application‑specific requirements, with tolerances defined by the bonding process and equipment being used. Depending on geometry and application, tolerances typically operate at ±0.0001 in / ±0.003 mm, with features producible down to 0.006 in / 0.15 mm in diameter. This micron‑level precision supports tight roundness, concentricity, and surface finish requirements.

Hyperion’s expertise in tungsten carbide and diamond supports the production of precision components intended for demanding electronic manufacturing environments, where long wear life and consistent geometry are required.



Custom Components



Hyperion offers custom components developed in collaboration with manufacturers and end users of electronic bonding equipment. Whether optimizing an existing design or producing to a supplied drawing, bonding tools are manufactured to meet specific application needs.

Design flexibility allows customers to source wire bonding jewel clamps and related bonding components that integrate seamlessly into their electronic manufacturing processes.



Supply Chain Stability



Bonding tools are supplied as high-precision wear components for demanding electronic manufacturing environments, where consistency, traceability, and quality control are critical. Hyperion supports these requirements through standardized inspection processes, NIST-traceable measurement practices, and quality systems aligned with internationally recognized ISO certifications.

A vertically integrated manufacturing model, supported by facilities in Europe, the United States, and Asia, ensures control over critical production steps from material selection through finishing. This global footprint enables consistent product quality, supply continuity, and responsiveness to regional customer needs.

Early collaboration is encouraged to confirm geometry, material selection, and performance expectations, helping ensure optimal tool performance and long-term process stability.

Frequently Asked Questions about Electronic Bonding Tools

Wire bonding is a manufacturing process used in semiconductor and microelectronics production to create electrical connections using fine wire between components or contact points.

Wire bonding jewel clamps help guide and hold the wire in position during bonding. They support accurate placement and stability but do not perform the bond themselves.

Carbide improves electronics manufacturing by increasing the durability and performance of critical tooling components, such as jewel clamps. Its superior wear resistance helps maintain dimensional accuracy over time, enabling more consistent processing and reducing tool degradation compared to conventional materials. The result is improved process stability, longer tool life, and reduced maintenance interruptions.
